Application

LEDs

YAG, Silicate etc.

White LED is used in the automotive industry, as backlight of mobile phones, and for illumination. Used for sealing LED chips, it is composed of high-density fluorescent substance and low-viscosity silicone resin.

YAG, Silicate etc.

Material YAG, Silicate etc.
Capacity 30g
Particle size 15μm
Unit THINKY MIXER ARV-310LED
Operation time setting 400rpm Non vacuum 30sec+ 1200rpm 0.6Kpa 3min
Compounding ratio 10wt%
Material Viscosity 3000-5000 mPa・s
Density 4.7g/cm3

Related data

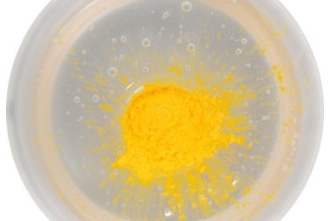

  • Before

    Before

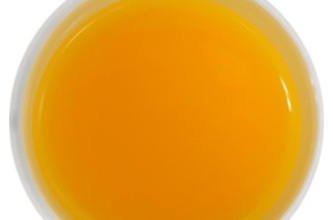

  • After

    After

Supported products

THINKYMIXER (Vacuum) ARV-310LED

・Simultaneous mixing, dispersion, and submicron-level air bubble elimination
・Deaeration of high-viscosity materials difficult to be processed by a centrifugal separator
・Reduced processing time and improved deareation performance compared to the atmospheric type mixer
・Centrifugal force of revolution prevents overflow of material during operation
・High-specific-weight materials such as fluorescent material can be evenly dispersed and deaerated without sedimentation (ARV-310LED)
・CE certified model is available

more

THINKYMIXER (Non Vacuum) ARE-250 CE

・230V ready
・The 2 modes of mixing and deaeration achieve dispersion and deaeration of high-viscosity materials in a small amount of time
・Cold-insulated, heat-resistant adapter enables support of various material characteristics
・Wide variety of adapters for using various containers
・Memory and step-operation functions for controlling and executing operating conditions
・CE certified model is available

more
